Parallel performance: OpenMP threads vs R-side parallelism

Two kinds of parallelism

heatwave3 detects marine heatwaves one pixel at a time, and pixels are completely independent of one another: a pixel’s climatology and events depend only on its own temperature time series. That independence is what makes the problem embarrassingly parallel, and it can be exploited in two distinct ways.

1. OpenMP threads (in-process). The C++ core spreads pixels across CPU cores using OpenMP. Everything happens inside a single R process: the data slab is read once into shared memory, the threads compute, and one set of output files is written. Controlled by the n_threads argument (or setHW3threads()). This is the fast path, when it is available.

2. R-side parallelism (across processes). Several R processes each run heatwave3 single-threaded on a spatial tile of the grid, and the results are combined. Controlled with the parallel package. This works even when OpenMP is not compiled in, and it is the only way to scale across more than one machine.

This vignette measures both, on the same dataset, and explains when to reach for each. It closes with platform-by-platform setup advice (Linux, macOS, Windows).

Why this is relevant on macOS. Apple’s compiler ships without OpenMP, so a default macOS build of heatwave3 runs single-threaded regardless of what you pass to n_threads. The Setup section shows how to enable OpenMP, and the R-side section shows how to get parallelism without it.

Is OpenMP active?

getHW3threads() reports the default thread count. With OpenMP enabled it returns roughly half your cores. If it returns 1, the package was built without OpenMP and n_threads will have no effect.

library(heatwave3)
getHW3threads()
#> [1] 9        # OpenMP active (here: 50% of 18 cores)
#> [1] 1        # OpenMP NOT compiled in -> single-threaded

You can also confirm at the binary level (macOS/Linux):

# Should list an OpenMP runtime (libomp.dylib / libgomp.so / libomp.so)
otool -L $(Rscript -e 'cat(system.file("libs/heatwave3.so", package="heatwave3"))') | grep -i omp   # macOS
ldd       $(Rscript -e 'cat(system.file("libs/heatwave3.so", package="heatwave3"))') | grep -i omp   # Linux

The dataset

The OSTIA reanalysis over the South-West Indian Ocean / South African east coast: a 400 × 200 grid at 0.05° resolution (15–35°E, 38–28°S), 14,276 daily time steps (1982–2021), of which roughly 50,000 pixels are ocean. The climatological baseline is 1982–2011.

sst_file <- "/Volumes/OceanData/OSTIA_East_Coast_MHW/SWIO_Jan1982-Dec2021.nc"
var_name <- "analysed_sst"
clim_period <- c("1982-01-01", "2011-12-31")

All three methods produce the same deliverable, the full event table as an in-memory data.frame, so their wall-clock times are directly comparable.

Method 1: single-threaded

The baseline. n_threads = 1 forces one core regardless of the package default.

library(heatwave3)

run_once <- function(nthreads, lon_range = NULL) {
  cf <- tempfile(fileext = ".nc")
  ef <- tempfile(fileext = ".nc")
  on.exit(unlink(c(cf, ef)))
  detect3(
    sst_file,
    cf,
    ef,
    climatologyPeriod = clim_period,
    var_name = var_name,
    lon_range = lon_range,
    category = TRUE,
    return_df = TRUE,
    n_threads = nthreads
  )
}

system.time(ev1 <- run_once(1L))

Method 2: OpenMP multithreading

Identical call, more threads. Because pixels are independent, OpenMP gives each thread a share of them, with no locking and no coordination.

system.time(ev12 <- run_once(12L))

# Results are independent of thread count:
nrow(ev1) == nrow(ev12)
#> [1] TRUE

Sweeping the thread count maps the scaling curve:

for (nt in c(1, 2, 4, 8, 12, 16)) {
  t <- system.time(run_once(nt))[["elapsed"]]
  cat(sprintf("%2d threads: %5.1f s\n", nt, t))
}

Method 3: R-side parallelism (PSOCK)

When OpenMP is unavailable, or to scale across machines, split the grid into longitude tiles and run one single-threaded heatwave3 per worker process. Since pixels are independent, the union of the tiles is identical to a whole-domain run.

We use a PSOCK cluster (independent R processes) rather than fork-based mclapply(). On macOS, forking after the NetCDF/HDF5 and Apple Objective-C runtimes have initialised is unsafe (sporadic worker crashes, and the +[NSCharacterSet initialize] ... fork() abort). PSOCK launches clean processes that each open their own files, like running several Rscript jobs side by side. It is also the only option on Windows, where fork() does not exist.

library(parallel)

# Read the longitude coordinate once (cheap), to cut non-overlapping tiles.
g <- heatwave3:::hw3_read_sst(
  sst_file,
  var_name,
  time_range = c("1982-01-01", "1982-01-02")
)
lon <- sort(unique(g$lon))

make_tiles <- function(n) {
  pad <- 0.45 * min(diff(lon)) # < half the grid spacing
  grp <- cut(seq_along(lon), breaks = n, labels = FALSE)
  unname(lapply(split(lon, grp), function(L) c(min(L) - pad, max(L) + pad)))
}

run_psock <- function(n_workers) {
  cl <- makeCluster(n_workers, setup_strategy = "sequential")
  on.exit(stopCluster(cl))
  clusterEvalQ(cl, suppressPackageStartupMessages(library(heatwave3)))
  clusterExport(cl, c("sst_file", "var_name", "clim_period"))
  tiles <- make_tiles(n_workers)
  parts <- parLapply(cl, tiles, function(lr) {
    cf <- tempfile(fileext = ".nc")
    ef <- tempfile(fileext = ".nc")
    on.exit(unlink(c(cf, ef)))
    detect3(
      sst_file,
      cf,
      ef,
      climatologyPeriod = clim_period,
      var_name = var_name,
      lon_range = lr,
      category = TRUE,
      return_df = TRUE,
      n_threads = 1L
    ) # 1 thread per worker!
  })
  do.call(rbind, parts)
}

system.time(evp <- run_psock(16L))

The n_threads = 1L inside each worker is essential: with OpenMP active, each freshly-loaded heatwave3 would otherwise default to all its threads, so 16 workers × 9 threads would oversubscribe the machine badly. See Don’t oversubscribe.

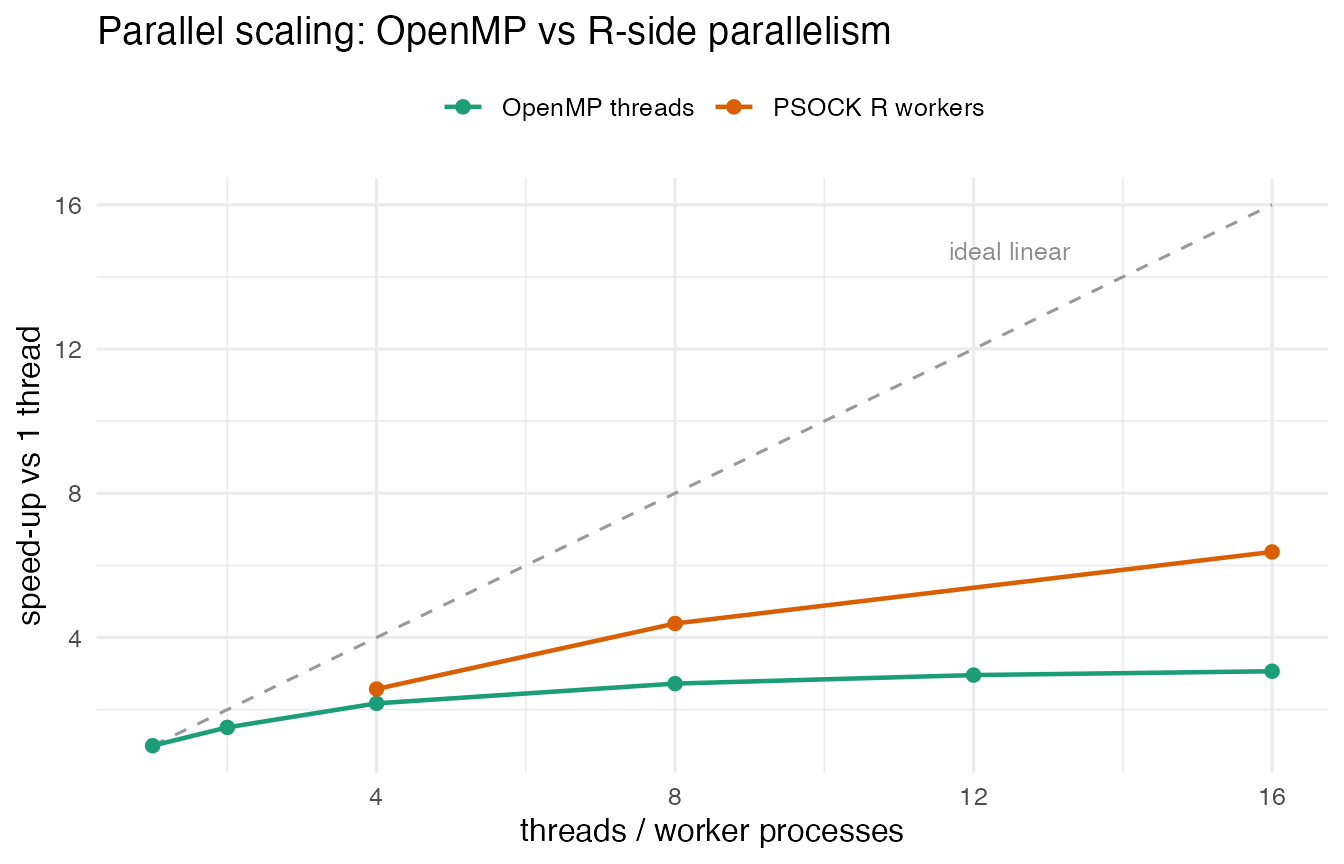

Results

Wall-clock time to produce the full event table.

Method	Workers/threads	Time (s)	Speed-up
OpenMP (threads)	1	109.3	1.0
OpenMP (threads)	2	72.5	1.5
OpenMP (threads)	4	50.3	2.2
OpenMP (threads)	8	40.2	2.7
OpenMP (threads)	12	37.0	3.0
OpenMP (threads)	16	35.7	3.1
PSOCK (R workers)	4	42.5	2.6
PSOCK (R workers)	8	24.9	4.4
PSOCK (R workers)	16	17.1	6.4

On this run (whole domain, ca. 50,000 ocean pixels, warm file cache), the single-threaded baseline took 109 s. OpenMP reached 3.1× (36 s) at 16 threads, and R-side PSOCK reached 6.4× (17 s) at 16 workers. Every method returned the same 4,863,985 events.

Reading the curves

Both methods speed the analysis up substantially, and both fall short of ideal linear scaling, but PSOCK scales further than OpenMP here, for a reason worth understanding.

The work has three phases, namely read the NetCDF slab, compute per pixel, and assemble the 4.9-million-row event data.frame. OpenMP parallelises only the middle phase. The read and the assembly happen single-threaded in the one R process, so by Amdahl’s law that serial fraction caps the speed-up, and OpenMP plateaus near 3× regardless of thread count.

PSOCK parallelises all three phases. Each worker process reads only its own longitude slice and builds only its own sub-frame, concurrently, so the I/O and the assembly scale with the worker count too. With the file already in the OS cache, those concurrent reads are cheap, and PSOCK keeps gaining past the point where OpenMP has flattened.

Two caveats keep this from being a blanket “PSOCK wins”:

• Endpoint. This benchmark returns the events as an in-memory data.frame, which makes the serial assembly a large part of OpenMP’s tail. The usual production endpoint (write one event NetCDF, return_df = FALSE) removes that assembly, shrinking OpenMP’s serial fraction and narrowing the gap.
• Storage. PSOCK’s edge depends on those per-worker reads being cheap. On a cold cache or slow/network disk, sixteen processes reading at once can contend, eroding or reversing the advantage. OpenMP reads the slab exactly once.

OpenMP also stays the simpler option, with one call, one output file, no tiling or merge, and no inter-process serialisation. PSOCK earns its overhead by working with no OpenMP at all, by isolating failures to a single tile, and by scaling across separate machines.

Discussion

When to use which

• OpenMP is the default choice on a single machine when the package is built with it. It has the lowest overhead, uses shared memory, and writes one NetCDF. Set n_threads, or leave it at the package default.
• R-side parallelism (PSOCK) is for when (a) you cannot enable OpenMP, such as on a managed Mac, (b) you want to spread work across multiple machines in a cluster, or (c) you want process isolation so one failing tile cannot bring down the whole run. Each worker writes its own tile, and you merge afterwards.
• The two combine across a cluster. One PSOCK (or MPI) worker per node, each using OpenMP across that node’s cores, is the standard HPC pattern. On a single workstation, pick one.

Correctness

Because pixels are independent, every method returns the identical event table (we assert nrow() equality above, and the per-pixel metrics match to the bit). Tiling changes only which process computes a pixel, never the result. The one exception is detect_blob3(), which finds spatially connected heatwave blobs across pixels. That computation must see the whole grid and cannot be tiled this way.

Do not oversubscribe

Running N worker processes that each launch M OpenMP threads creates N × M threads. If that exceeds your physical cores, the threads contend for them and everything slows down. Practical limits:

• Pure OpenMP: n_threads ≤ physical cores.
• Pure PSOCK: n_workers ≤ physical cores, n_threads = 1 in every worker.
• Hybrid (cluster): n_workers_per_node × n_threads ≈ cores_per_node.

heatwave3 defaults to ca. 50% of cores so that a careless nested call does not saturate the machine, but explicit is better than implicit.

Enabling OpenMP, by platform

heatwave3’s configure script probes for a working OpenMP toolchain at install time (compile → link → load → run a parallel reduction) and falls back to single-threaded if none is found. The install log prints which path it took:

Detecting OpenMP...
  Trying Apple Clang + R's bundled libomp
  -> works
Using OpenMP:
  CXXFLAGS: -Xclang -fopenmp -I/opt/homebrew/opt/libomp/include
  LIBS:     /Library/Frameworks/R.framework/Resources/lib/libomp.dylib

Linux: works without extra setup

GCC and Clang support OpenMP natively and R already advertises the flags. Install NetCDF and a compiler:

sudo apt install libnetcdf-dev build-essential   # Debian/Ubuntu
sudo dnf install netcdf-devel gcc-c++             # Fedora/RHEL
R CMD INSTALL heatwave3

OpenMP scaling is typically the best of the three platforms (low thread creation overhead). Fork-based mclapply() is also safe here, though PSOCK remains the portable choice.

macOS: provide an omp.h header

The R 4.x framework already ships the OpenMP runtime (libomp.dylib), and heatwave3 links that one so the whole R process shares a single OpenMP runtime. Apple Clang only lacks the omp.h header, which configure finds from Homebrew (or /usr/local). The one-time setup is then:

brew install libomp netcdf      # libomp here supplies omp.h; netcdf is required
R CMD INSTALL heatwave3          # configure links R's own libomp, header from brew

R’s bundled libomp.dylib is older and lacks __kmpc_dispatch_deinit, the symbol Apple Clang emits for schedule(dynamic). Linking a second, newer libomp (such as Homebrew’s) appears to work until another package, or your environment’s library search path, redirects libomp.dylib back to R’s copy at load time, and the package then fails with symbol not found ... ___kmpc_dispatch_deinit. heatwave3 avoids this by using schedule(static, 1), which needs only symbols R’s own libomp already provides, so the process holds one OpenMP runtime and no conflict arises.

For R-side parallelism on macOS, prefer PSOCK. If you must use mclapply(), export OBJC_DISABLE_INITIALIZE_FORK_SAFETY=YES before starting R, and treat concurrent forked NetCDF/HDF5 access as unsafe.

Windows: OpenMP works, no fork

Rtools (GCC/MinGW) supports OpenMP without extra setup and configure.win locates NetCDF, so multithreading via n_threads works with no extra steps. There is no fork() on Windows, so mclapply() silently runs serially, and R-side parallelism must use a PSOCK cluster (makeCluster() / parLapply()), exactly as shown above.

Summary

Approach	Enable with	Best when	Notes
Single-threaded	n_threads = 1	debugging, tiny grids	reference result
OpenMP	n_threads = N	one machine, OpenMP built	low overhead, shared memory, single output
PSOCK	parallel::makeCluster	no OpenMP, or many machines	tile by longitude, n_threads = 1 per worker

All three give the same science. OpenMP is the efficient default on a single host, and R-side parallelism is the portable fallback and the route to multi-machine scaling.
